Introduction and Terminology
Purtscher retinopathy was first described in 1910 by Otmar Purtscher1 in a man who fell from a tree and suffered cranial trauma. The author noted multiple abnormalities in fundoscopic examination, including retinal hemorrhage and retinal whitening, associated with diminished visual acuity. Purtscher retinopathy has since been described as a chorioretinopahy associated with indirect trauma, non-ocular injury, associated with a constellation of retinal findings including cotton-wool spots, retinal hemorrhages, optic disc edema, and Purtscher flecken (areas of inner retinal whitenening). The condition is most classically associated with compression trauma.
When typical retinal findings occur in the complete absence of trauma, the term Purtscher-like retinopathy is used. Purtscher like retinopathy has been associated with multiple clinical entities, including acute pancreatitis2, pancreatic adenocarcinoma3, renal failure4, preeclampsia and childbirth5, connective tissue disorders6, crush injury, fat embolism syndrome7,8, long bone fracture9, orthopedic surgery, Valsalva maneuver and weight-lifting10, lymphoproliferative disorders and bone marrow transplantation11, barotrauma12, steroid injections in and around the orbit and nasal passages13, retrobulbar anesthesia14, hemolytic uremic syndrome15,16, cryoglobulinemia17, shaken baby syndrome18. Because Purtscher and Purtscher-like retinopathies likely share a common pathophysiological background, clinical presentation and treatment, they are collectively referred to as “Purtscher retinopathy”. In a systematic review, Miguel et al reported that the most commonly associated condition was trauma followed by acute pancreatitis19.

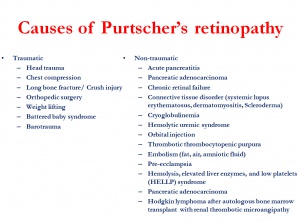

The causes are provided in the figure.
The most important clinical symptom of Purtscher retinopathy is a diminished visual acuity. In cases where there is a causal link with a traumatic event, visual disturbance may appear synchronous with that event or be delayed up to 24-48h22. Bilateral disease is generally present in 60% of cases and in virtually all cases if precipitated by acute pancreatitis20. However, there is no apparent association between the extent of retinal involvement and the unilateral or bilateral presentation of the disease20. Diminished visual acuity is typically accompanied by visual field loss, either in the form of central, paracentral or arcuate scotomata, while peripheral visual field is usually preserved22.
Miguel et al19 reported that the most frequently encountered fundoscopic signs were cotton-wool spots (in 93% of cases), followed by retinal hemorrhages (65%) and by Purtscher flecken (63%). Purtscher flecken are pathognomonic findings and can be described as polygonal areas of retinal whitening with a clear demarcating line (within 50µm) between the affected retina and contiguous normal retinal vessels. A typical photo can be found at http://www.healio.com/ophthalmology/retina-vitreous/news/print/ocular-surgery-news/%7B06f12fe0-1b0a-4326-baf6-9f59b8ee8e71%7D/man-referred-for-sudden-onset-decline-in-vision-in-left-eye
The sparing of the perivascular retina from the whitening is very typical. However, it may be present in only 50% of patients20. The lesions may be discrete, multiple and of variable size, and usually affect the superficial inner aspect of the retina. Its distribution is typically confined to the peri-papillary retina and macular area, due to the fact that arterioles and capillaries in this region are more susceptible to embolic occlusion as a result of fewer arteriolar feeders and fewer anastomoses22,23. In Purtscher retinopathy a pseudo-cherry spot may appear on funduscopic examination. This occurs when the retinal whitening surrounds the fovea, and must be differentiated from a "true" cherry red spot with central retinal artery occlusion.
Miguel et al reported that on 2 months follow-up, a normalization of the retinal appearance on fundoscopic examination was present in 40% of patients, while optic atrophy occurred in 64%, mottling of the retinal pigment epithelium in 23%, retinal thinning in 14% and narrowing of retinal arteries in 4%19.
Zones in Purtscher's retinopathy
The retina has been divided into 3 zones centering the fovea.20 Zone A is an area with radius of 4 disc diameters. Zone B extends outside zone A to the equator. Zone C is anterior to the zone B and extends to ora serrata. Most of the cases (2/3rd) involve zone A alone. Zone C is typically not involved.
Diagnostic criteria and differential diagnosis
Diagnostic criteria have been proposed. This includes two important groups. First, the existence of an associated contributing illness or event that may result in Purtscher retinopathy (acute pancreatitis, renal failure, chest compression, long bone fracture, etc). Secondly, the appearance of lesions on fundoscopic examination. The first criteria were proposed by Agrawal et al20:
- An associated contributing illness or event
- Long bone fracture
- Acute pancreatitis
- Renal failure
- Chest compression
- Purtscher flecken and/or superficial cotton wool spots uni or bilaterally
- Restricted to the posterior pole
- No direct ocular trauma
- No visible emboli in the retina vessels
- Accompanied by minimal retinal hemorrhage, if any
More recently, in a systematic review, updated diagnostic criteria for Purtscher retinopathy have been proposed by Miguel et al19. Diagnosis is made in a patient that matches at least three of five criteria:
- Purtscher flecken
- Retinal hemorrhages, in low to moderate number
- Cotton-wool spots (confined to the posterior pole)
- Probable explanatory etiology
- Complementary investigation compatible with diagnosis
Important entities in the differential diagnosis include branch or central retinal artery occlusion and commotio retinae. Clinical examination, history, and diagnostic testing are useful in solidifying the diagnosis.
Complete ophthalmic examination should also include optical coherence tomography (OCT) and fluorescein angiography (FA).
In the acute phase, OCT may show a hyperreflectivity in the inner retinal layers corresponding to cotton-wool spots and a variable degree of macular edema. In late/chronic cases, Purtscher retinopathy may lead to a variable degree of outer retinal atrophy and photoreceptor loss, also noted on OCT. This has been considered of prognostic significance24-26.
Paracentral acute middle maculopathy (PAMM) has been reported to be seen in Purtscher's retinopathy (http://dx.doi.org/10.1016/j.ajo.2015.04.004). On spectral domain OCT the PAMM is characterized by hyper-reflectivity at the inner nuclear layer which signifies involvement of deep and intermediate retinal plexuses.
Lesions visible in FA generally can include blocked choroidal fluorescence (either due to retinal whitening or blood), occluded retinal arterioles, areas of capillary non-perfusion, late leakage from the retinal vessels in areas of ischemia and optic disc edema. Early acute changes (within 2 hours) show slight early masking of choroidal fluorescence in the affected area, with subsequent arteriolar leakage28. It has been stated that this area of choroidal hypofluorescence may be present up to five months after the diagnosis29. Leakage from the optic nerve has also been reported30. Interestingly, areas of hypofluorescence have also been noted on indocyanine green angiography, implying that the choroidal vasculature is also involved in the pathogenic process29.
Electroretinography (ERG) findings reflect the current understanding of the pathogenesis of this disease. Multi-focal ERG shows a depression in both A-waves and B-waves in the affected retina, lending evidence that both the outer and inner retina are involved31.
Pathogenesis of Purtscher retinopathy has been a field of intense research and controversy in the past decades. In his original report, Purtscher stated that the retinal lesions were a result of extravasation of lymphatic material from the retinal vessels after a sudden increase in intracranial pressure.
Currently, the most accepted theory centers on microembolization of retinal vasculature, resulting in arteriolar precapillary occlusion and microvascular infarct of retinal nerve fiber layer (resulting in cotton-wool spots)22,27. Embolization can occur from a fat emboli (as described in long bone fractures) or as a result of disseminated pancreatic proteases in the systemic circulation, as occurs in acute pancreatitis. It has also been proposed that microembolization derives from leukoembolization by leukocytary aggregation. C5 and complement activation would play a crucial role with secondary lymph extravasation32,33. In addition, in cases of chest compression (or weight-lifting or battered baby syndrome), impaired venous return and acute expansion of retinal veins may produce the clinical fundoscopic appearance of Purtscher retinopathy, such as cotton-wool spots, retinal hemorrhages and, less frequently, lesions resembling Purtscher flecken34. Disseminated lipase after systemic injury can also result in a retinal vasculitis that leads to thrombosis and vascular occlusion7.
Regarding the pathognomonic Purtscher flecken, it has been previously stated that they appear in the superficial retina, with a clear demarcating line between the whitened affected retina and the normal retina adjacent to the retinal vessels. This clear zone corresponds to the capillary free area, which extends approximately 50µm on either side of the retinal arteries and precapillary arteries23. The existence of this demarcating line in patients with Purtscher retinopathy suggests that the primary pathogenic process lies within the precapillary arterioles. If the emboli were large they would occlude the proximal part of retinal arteries, resulting in the confluent retinal whitening that is present in patients with branch retinal artery occlusion. On the other hand, if the emboli were small they would occlude the distal part of retinal capillaries, resulting in the fundoscopic appearance of cotton-wool spots.
Potential emboli vary in their origin, depending on the clinical context that caused the disease. They include air, fat, leukocyte aggregates, platelets and fibrin. But they can also include other particles, given the fact that Purtscher disease has been elicited after both retrobulbar anesthesia14 and orbital injection of suspended steroid particles13. Regarding fat embolism, it usually occurs after long bone fracture, surgery and pancreatitis, when there are fat emboli released from the intramedullary fat into the venous circulation. However, fat emboli are usually 5-10µm in diameter, which makes them too small to occlude the 45µm diameter precapillary arterioles. They would on the contrary be able to occlude the smaller 5µm retinal capillaries. For that reason, cotton-wool spots and/or retinal hemorrhages have been noted in 4% of patients with long bone fracture, but Purtscher flecken were absent9. Fat embolism syndrome is a rare complication of trauma, even if the release of fat into the systemic circulation may be common after trauma. It comprises a collection of signs and symptoms that occur within 12-36 hours of the event (either long bone fracture, orthopedic surgery, chest compression). The systemic manifestations result from the presence of fat emboli within the systemic circulation, associated with elevation of plasma lipase (that leads to saponification of lipid stores), vasculitis induced by free fatty acids, hipovolemia and coagulation and complement activation. Complement activation may induce the formation of leukocytes aggregates, which are up to 50µm in diameter and for that reason are large enough to induce precapillary arteriolar occlusion in retinal vessels39. Complement activation has been proved to occur in several diseases associated with Purtscher-like retinopathy, such as connective tissue disorders or renal failure.
Data from histopathology studies regarding Purtscher retinopathy are scarce due to the frequently benign natural history of this disease. Kincaid et al performed histopathology 23-days after the retinal arteriolar occlusion in patient who died from acute pancreatitis27. They encountered focal areas of edema within the inner layers of the retina, with cystoid spaces and disruption of the normal architecture. Transition for the normal to the affected retina was abrupt. In areas where there was disruption and loss of photoreceptors segments this was more evident in the outer segments than in the inner segments. However, the underlying retinal pigment epithelium and choroid were normal. Retinal arterioles were occluded by periodic-acid-Schiff positive material, while the stain for fibrin was positive. Small hemorrhages were present in the outer plexiform layer. Electron micrographs revealed that small arterioles with narrowed lumina contained proteinaceous material located centrally. This was considered consistent with recanalised thrombi. Holló et al published interesting results in a patient who died 6 days later from a necrotizing pancreatitis associated with Purtscher-like retinopathy41. Cotton-wool spots were similar to those of other etiologies, both in terms of histopathology and fundoscopic appearance. However, all the retinal vessels including vessels around and in the cotton-wool spots were intact and not obstructed, containing both plasma and red blood cells. The authors concluded that in cases of acute pancreatitis, vascular embolization with consequent vascular occlusion and endothelial damage is not necessary for the development of cotton-wool spots.
Currently there are no evidence based guidelines regarding treatment for Purtscher retinopathy, partially owed to the rarity of disease and heterogenous disease presentations. Several authors have published case reports with different therapeutic approaches.
Intravenous, high-dose corticosteroids:
The most commonly reported treatment is high-dose, intravenous steroids. Successful reports have been published by Wang et al30 and Atabay et al42. Authors attributed the favorable visual outcome to the ability of high-dose corticosteroids to stabilize damaged neuronal membrane and micro-vascular channels. This enables partial recovery of neuronal fibers that have not been damaged irreversibly. Steroids also inhibit granulocyte aggregation and complement activation43, which play a key role in the pathogenesis of this disease. However, the efficacy of steroids has not been established in prospective trials, and treatment with steroids is controversial.
Observation may be the most recommended therapeutic strategy. When known, treatment of the underlying condition (pancreatitis, etc) of Purtscher-like retinopathy should be paramount. Various authors1,20,27, including the systematic review by Miguel et al19, reported clearly that there is no statistically significant difference in visual acuity improvement between patients receiving high-dose corticosteroids and those receiving no specific treatment for the ocular lesions, with the added benefit of avoiding the adverse drug effects. This was true even for longer follow-up periods and regardless of the etiology19.
Papaverine hydrochloride44 and hyperbaric oxygen have been suggested, but evidence is limited and treatment cannot be recommended.
Visual recovery following Purtscher retinopathy is variable.
Agrawal et al reported that 54% of patients presented with a Snellen visual acuity of 6/60 or worse, with no significant difference regarding the three most common etiologies (road traffic accident, acute pancreatitis and chest compression)20. Mean improvement in visual acuity was 2.7 (SD 3.6) Snellen lines, with no statistically difference between the three etiologies. Spontaneous visual recovery of at least 2 Snellen lines was seen in half of the cases. The authors also reported that patients with a worse visual acuity at presentation were more likely to still have acute changes at funduscopic examination at 1-month follow-up. The authors concluded that there may be a non-significant trend for the earlier resolution of the acute changes to be associated with a better initial and final visual outcome.
Agrawal et al22 suggested possible prognostic factors associated with a poor outcome: optic disk swelling, leakage seen on FA, choroidal hypoperfusion, involvement of the outer retina and retinal capillary nonperfusion. Miguel et al19 noted absence of macular edema or pseudo-cherry red spot was associated with better visual acuity improvement at 6 months. Holak et al stated that, although previously mentioned prognostic factors are important, duration of acute retinal changes alone is the deciding factor for late prognosis24. Finally, Holló et al reported that the onset of Purtscher-like retinopathy in patients with severe acute necrotizing pancreatitis had clinical prognostic value and indicated multiple-organ failure and poor prognosis48.
